Orifice Plate

Name: Orifice Plate
Brand: ADITYA ENGINEERING WORKS
Price: 5000 INR
Availability: InStock

Price 5000 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Orifice Plate Specification

Pressure Ratings
150 to 2500 class

Operating Temperature
-200 to +900 Celsius (oC)

Features
Flow measurement & pressure reduction

Surface Treatment
Polished

Used For
Industries

Usage
Flow measurement & pressure reduction

Size
0.5 mm to

Material
Stainless steel

Style
Industries

Height
3 to 12 mm Millimeter (mm)

Product Type
Orifice plate

Weight
100 gsm ( Depend on size ) GSM (gm/2)

Properties
Paddle type concentric square Adge

Color
SS Finish

Width
0.5 to 36 inch Inch (in)

Condition
New

Application
Flow measurement & pressure reduction

Warranty
No

Orifice Plate Trade Information

Minimum Order Quantity
100 Pieces

FOB Port
Vadodara

Supply Ability
100 Pieces Per Week

Delivery Time
7 Days

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
Standard Pack

Main Domestic Market
, All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

Certifications
ISO 9001.:2015

About Orifice Plate

Aditya Engineering Works Leading Orifice Plate Manufacturer in India

Aditya Engineering Works is a trusted and established manufacturer of Industrial Orifice Plate Flange Assemblies and Flow Measurement Solutions based in Vadodara, Gujarat, India. Since 2001, the company has been serving industries with high-quality engineered flow elements and accessories designed for dependable flow control and measurement.

What Is an Orifice Plate?

An orifice plate is a primary differential pressure flow element used to measure the volumetric flow rate of liquids, gases, steam, and other process fluids within pipelines. It consists of a precisely engineered metal plate with a machined aperture that creates a pressure differential as fluid flows across it. This pressure drop is used to calculate the flow rate using standard equations.

Product Details Industrial Orifice Plate & Flange Assemblies

Aditya Engineering Works offers a comprehensive range of Orifice Plate Assemblies tailored for industrial flow measurement applications:

Popular Variants

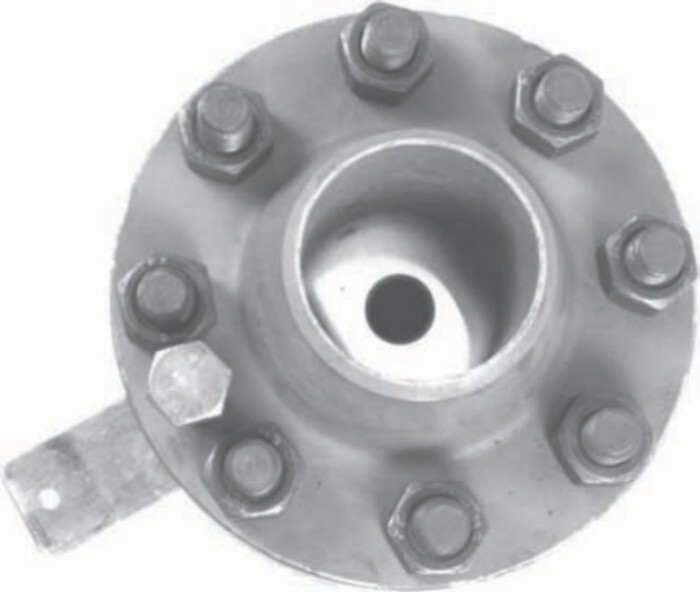

NPTF Orifice Plate Flange Assembly
SS Orifice Plate Flange Assembly
Carrier Ring Orifice Plate Flange
Integral Orifice Plate Assembly with Meter Run & Valve Manifold
Industrial Orifice Plate Flange Assembly designed for various line sizes and conditions.

Applications

These orifice plates and assemblies are ideal for:

Flow measurement of steam, gas, and liquids
Process control in petrochemical, oil & gas, power, water & wastewater plants
Industrial automation and metering systems

Technical Specifications

Although specific model data for Aditya Engineering Works products can be customized based on customer requirements, orifice plates generally have the following technical profile and standards (industry reference):

Material & Construction

Materials: Stainless Steel (SS304, SS316), Carbon Steel, Duplex, Super-Duplex, Alloy materials (optional)
Construction: Precision CNC machined orifice bore with smooth edges
Flange Ratings: ANSI/ASME flanges suitable for various pressure classes
Pressure Tapping: Flange taps or corner taps for differential pressure measurement

Performance Parameters

Specification	Typical Range
Beta Ratio (d/D)	0.2 0.75
Plate Thickness	3.18 mm 12.7 mm (customizable)
Operating Medium	Liquids, gases, steam
Standards Compliance	ISO 5167 / ASME B16.36 / BS 1042 (industry norms)

Note: Aditya Engineering Works manufactures these assemblies based on line size, pressure rating, and application needs as specified by the customer.

Key Features

Precision Flow Measurement Accurate and repeatable differential pressure flow readings for process monitoring.
Rugged Industrial Construction Machined from high-grade materials for durability and long service life.
Custom Engineering Tailored designs to fit specific pipeline sizes, flange ratings, and instrumentation interfaces.
Easy Installation & Integration Compatible with standard pipeline flanges and pressure instrumentation systems.
Stable Performance Reliable operation under varying process conditions and flow regimes.

Advantages of Orifice Plate Flow Elements

Cost-Effective Flow Measurement

Orifice plates provide one of the most economical solutions for industrial flow measurement and control compared to more complex flow meters.

Wide Application Flexibility

Suitable for liquid, gas, and steam services across multiple industries including chemical plants, refineries, power stations, and water treatment.

Simple Design with No Moving Parts

The static plate design reduces maintenance needs and improves long-term reliability.

Industry Standards Compliance

Machined and supplied in accordance with international flow measurement standards for uniform performance.

Customizable for Specific Needs

Customers can specify materials, flange ratings, type of taps, and assembly style to match exact process requirements.

Why Choose Aditya Engineering Works?

Aditya Engineering Works has earned a strong reputation as a leading orifice plate and engineered flow solutions manufacturer in India due to:

Over two decades of industry experience since 2001.
Skilled technical team and quality manufacturing facility.
Customer-centric product design and engineering support.
Competitive pricing and on-time delivery.
